GUARDRAIL SYSTEM

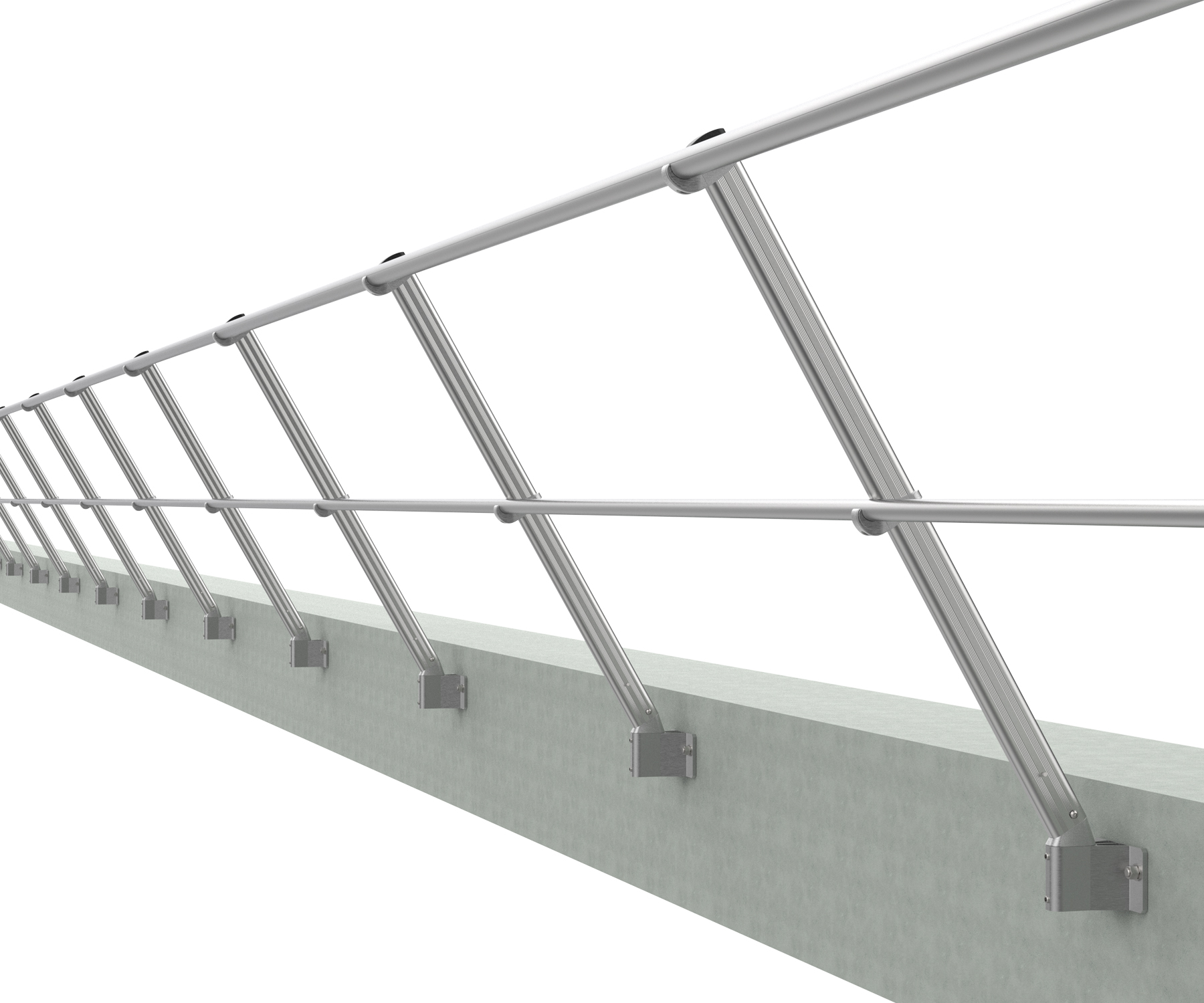

Inclined Wall bracket guardrail system

When a parapet is lower than the safety standards prescribe to safely access a roof, a wall mounted guardrail can provide a larger safe zone. This type of guardrail is either mounted on top or on the inside of the parapet or wall.

Material

Aluminum

Customization

Post Height

System Scale

Packaging


×
Please contact the customer service for the password

usage specification

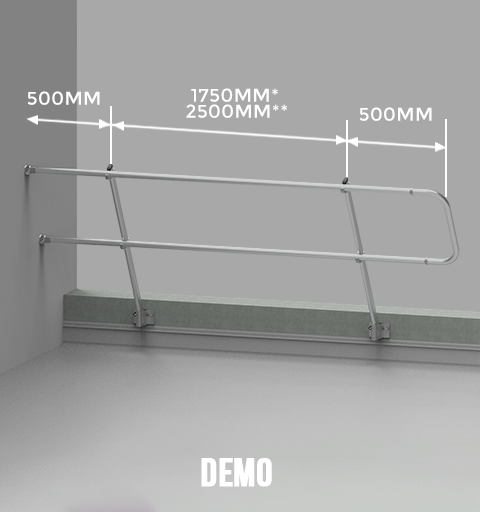

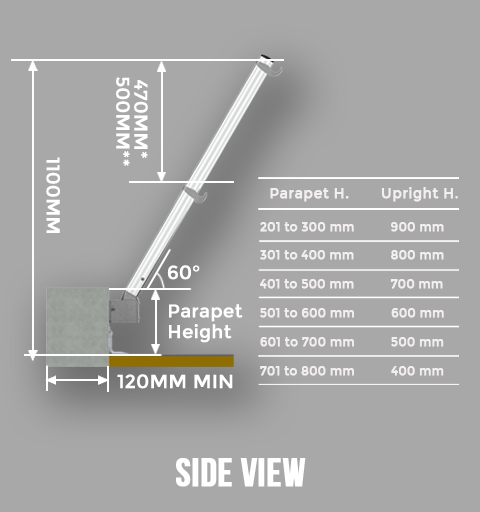

                                           ① The minimum vertical height of upright is 1100mm                                  ② The maximum height between handrail and kneerail is 500mm

                                           ③ The maximum allowed space between wall and first post is 500mm       ④ The maximum allowed space between free end and post is 500mm

                                           ⑤ The maxmium allowed span between posts is 1750mm                          ⑥ The thickness of parapet should be greater than 120mm



                   *EN14122-3:2016

                  **EN13374:2013+A1:2018
