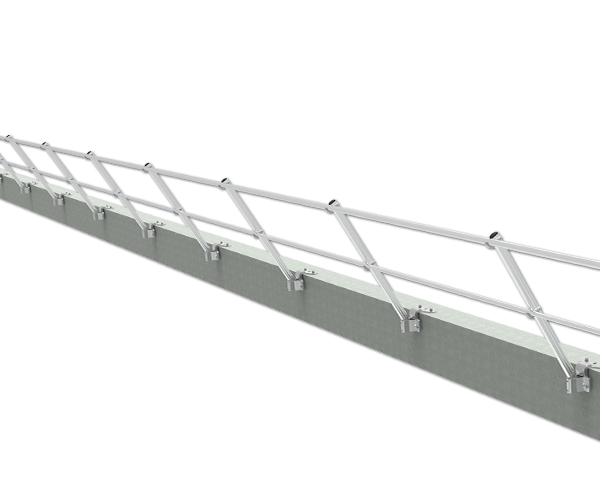

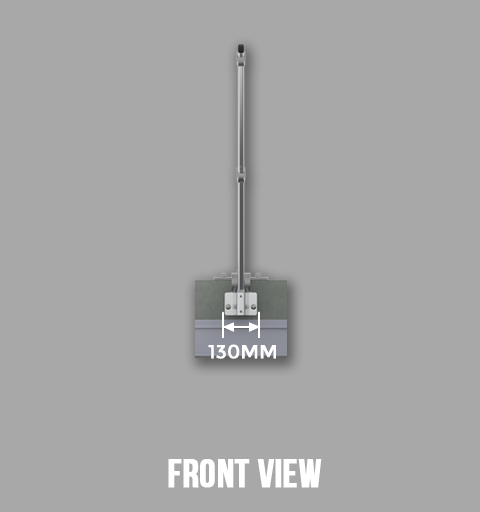

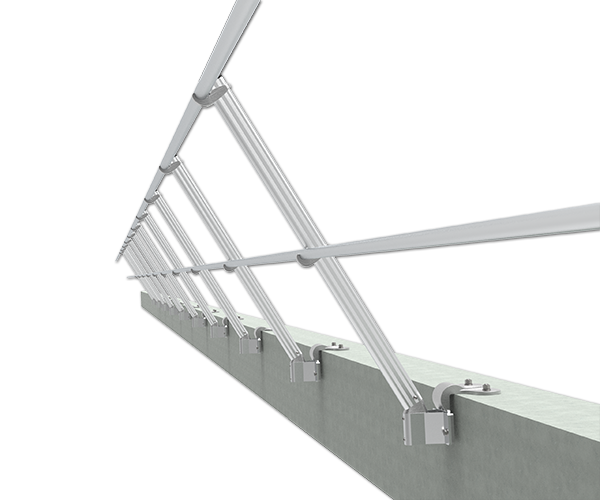

Inclined Z type bracket is adapted to attach to the parapet below the covering. Therefore the installation of the guardrail does not interfere with the tightness of the parapet, guaranteed by the covering. Z-type bracket apply several thickness of parapet, 70 mm, 130 mm and 160 mm.z type bracket guardrail
Aluminum
Post Height
System Scale
Packaging

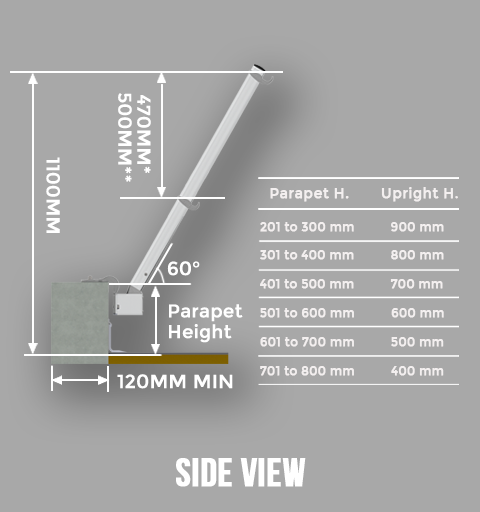

① The minimum vertical height of upright is 1100mm ② The maximum height between handrail and kneerail is 500mm

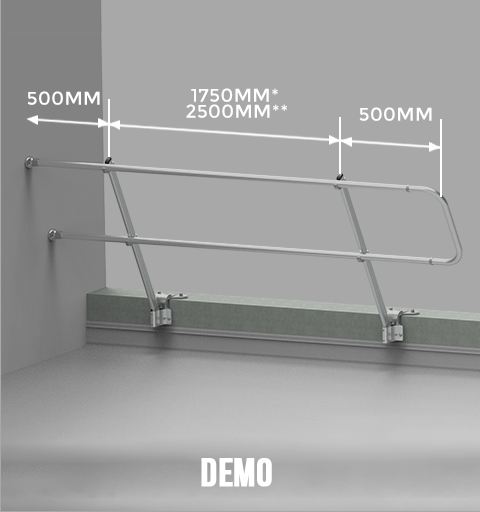

③ The maximum allowed space between wall and first post is 500mm ④ The maximum allowed space between free end and post is 500mm
⑤ The maxmium allowed span between posts is 1750mm ⑥ The thickness of parapet should be greater than 120mm
*EN14122-3:2016
**EN13374:2013+A1:2018
