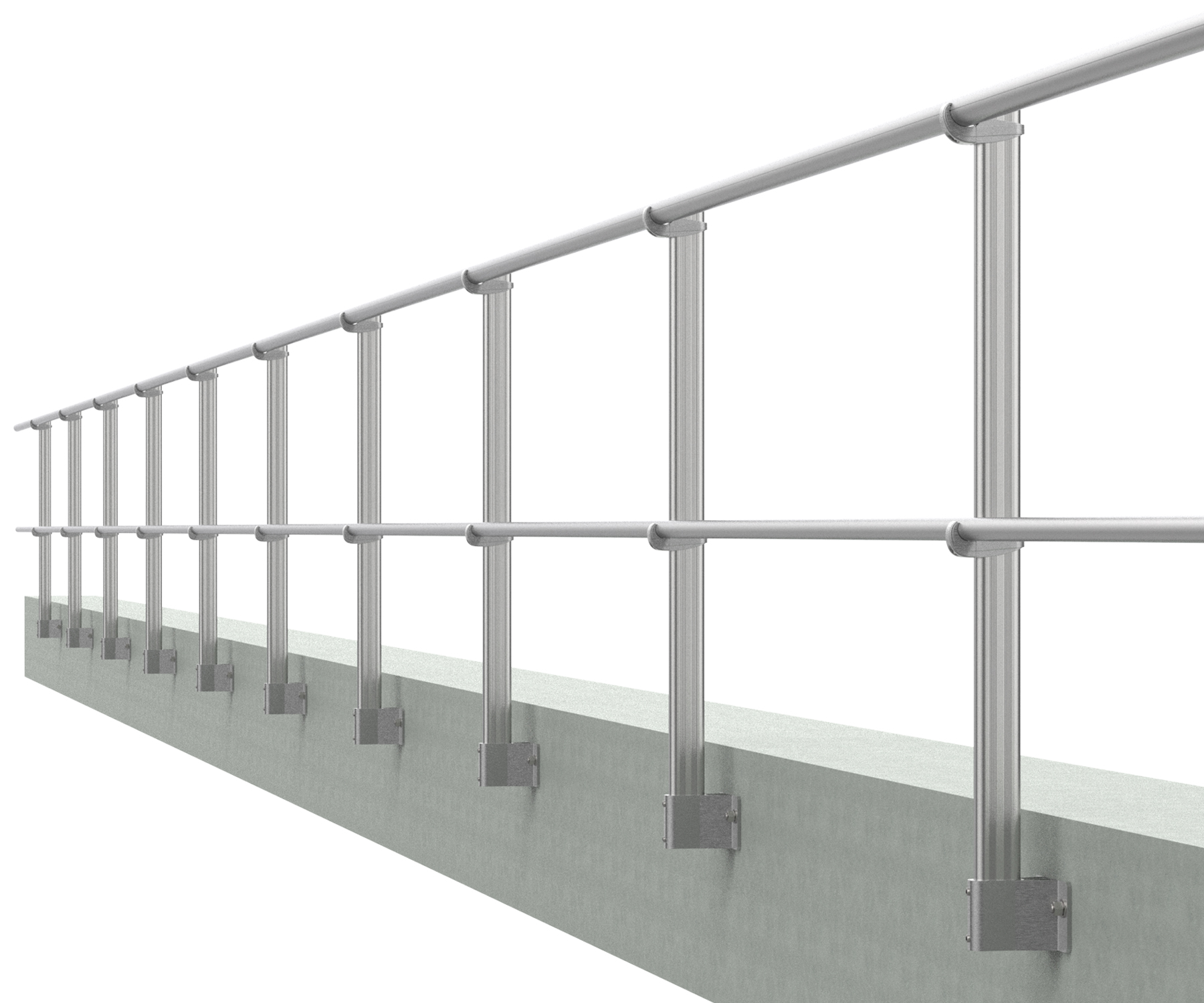

Wall bracket guardrail system

When a parapet is lower than the safety standards prescribe to safely access a roof, a wall bracket guardrail can be mounted to raise the barrier and create a safe zone. This type of wall bracket railing is either mounted on top or on the inside of the parapet or wall.




Post Height

System Scale


Please contact the customer service for the password

usage specification

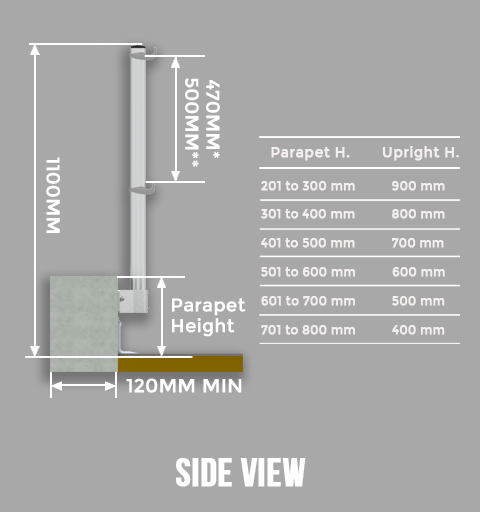

                                           ① The minimum vertical height of upright is 1100mm                                  ② The maximum height between handrail and kneerail is 470/500mm

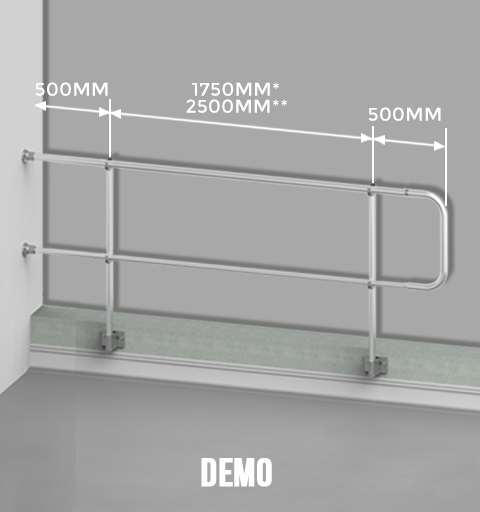

                                           ③ The maximum allowed space between wall and first post is 500mm       ④ The maximum allowed space between free end and post is 500mm

                                           ⑤ The maxmium allowed span between posts is 1750/2500mm                 ⑥ The thickness of parapet should be greater than 120mm
